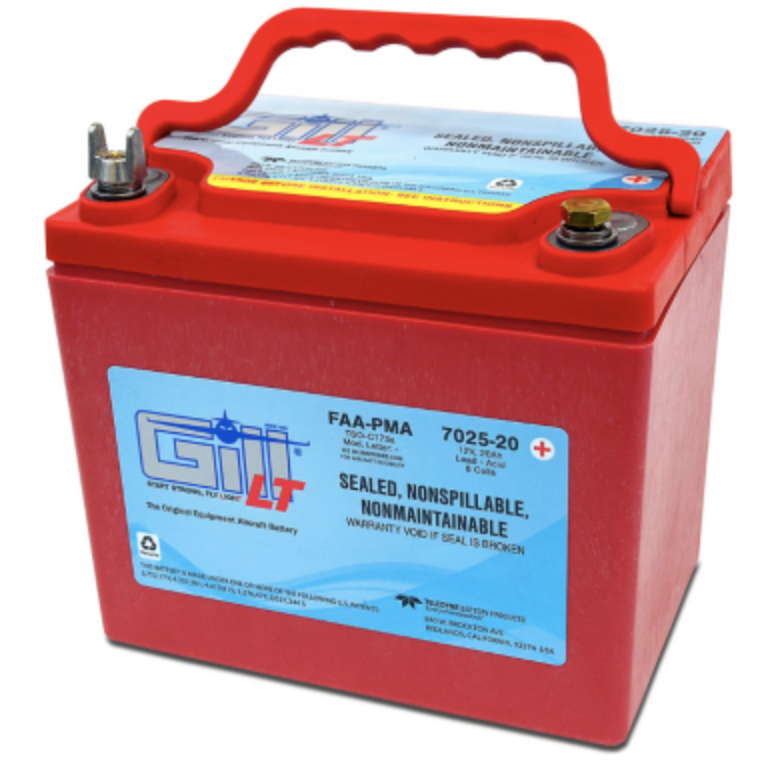

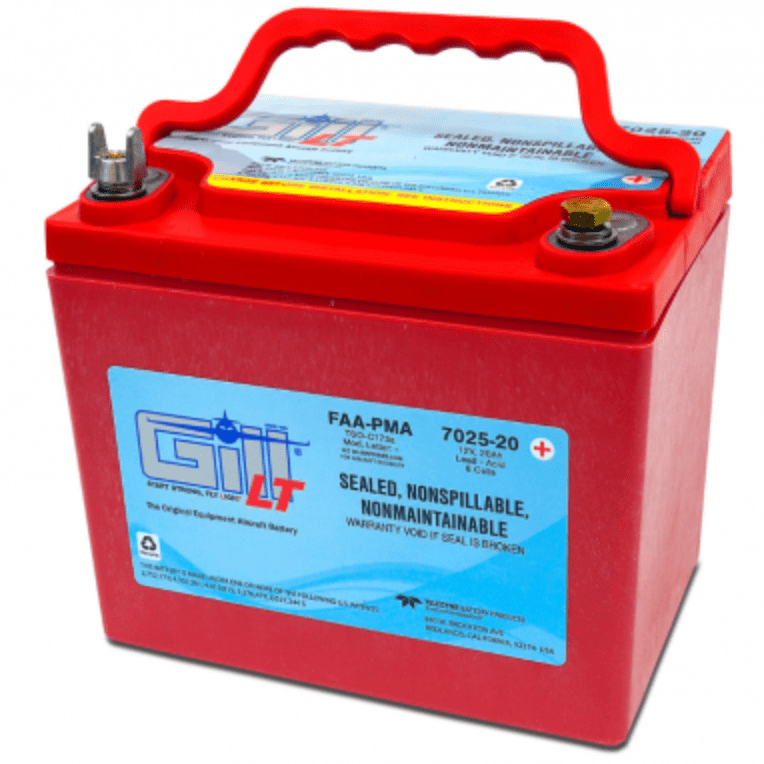

Gill 7025-20 Battery Features:
· Sealed, Non-Spillable
· Valve-regulated lead-acid battery (VRLA)
· Weight: 23 lbs
· Electrolyte: Not needed
· One Hour Capacity, C1: 20 Ah
· 30 Minute Emergency Rate, C/2: 32 Ah
Gill 7025-20 Battery Benefits:
· Provides optimal power, fast recharge and superior life
· TSO Authorized
· 2 Year Warranty
· 18 Month/1800 Hour Capacity Check Inspection
Specifications:
FAA/PMA approved
Tested to DO-160E standards
Gill 7025-20 Battery Aircraft Applications:
Alexandria: 17-30, 17-30A, 17-31, 17-31A, 17-31TC, 17-31ATC
American: 7ACA, 7EGA, 7GCBC
Champion Beechcraft: 19A, B19, 23, A23, A23A, B23, C23, A24, A24R, B24R, C24R, E33, E33A, E33C, F33, G33, 35-33, 35-A33, 35-B33, 35-C33, 35-C33A, D-55, D55A, E55, E55A, 58, 58A, 58P, 58TC, G58, 77, 95, B95, B95A, D95A, E95, 95-55, 95-A55, 95-B55, 95-C55, 95-C55A
Cessna: 120, 140, 150, 150A, 150B, 150C, 150D, 150E, 150F, 150G, 150H, 150J, 150K, 150L, 150M, A150K, A150L, A150M, 170, 172, 172B, 172C, 172D, 172E, 172F (USAF T-41A), 172G, 172H (USAF T-41A), 172I, 172K, 172L, 172M, 172N, F172D, F172E, F172F, F172G, F172H, F172K, F172L, F172M, F172N, 175, 175B, 175C, P172D, 177, 177A, 177B, 188, 188A, 188B, T188C, 310, 310B, 310C, 310D, 310F, 310G, 310H, E310H, 310I, 310J, 310J-1, E310J, 310K, 310P, 310Q, 320, 340
Commander: 112, 112TC, 112B, 112TCA Piper PA-11, PA-22-108, PA-22-135, PA-22-150, PA-22-160, PA-23-235, PA-23-250, PA-28-140, PA-28-150, PA-28-151, PA-28-160, PA-28-161, PA-28-180, PA-28-181, PA-28-201T, PA-28-235, PA-28-236, PA-28R-180, PA-28R-200, PA-28RT-201, PA-28RT-201T, PA-32-260, PA-32-300, PA-32R-300, PA-32RT-300, PA-32RT-300T, PA-36-285, PA-36-300, PA-36-375, PA-38-112
Socata: GA-7
True Flight: AA-1, AA-1A, AA-1B, AA-1C, AA-5, AA-5A, AA-5B
