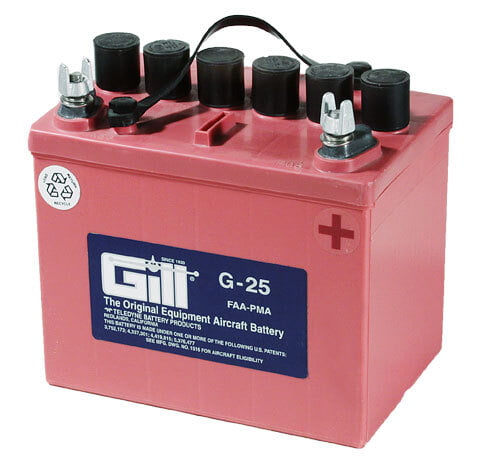

G-25
- ConditionFN
- ManufacturerTELEDYNE/GILL BATTERIES
- Price Updated Date01/01/25
- Alternate PNsCB12-9,58-380056-1,0511319-1,0511319-2,0511319-201,450-030,7025-20,7025-24,G25D
- Alternate Part NumberRG-25
- ECCN9A991(d)
- Schedule B8507.20.0090
- Live Stock301
- Quantity
Features:
· Assembled with electrodes (plates) that have been fully charged and dried
· Improved case-cover seal
· Heavy-duty internal post
· Weight: 21lbs
· Electrolyte: 2 Qts./1.285 s.g.
· Capacity: 1 hr (C1) 18
· Ipp: 30 min (2C) 30
· Ipr: 60 sec/0 deg F (CCA) 225
Benefits:
· Provides optimal power, fast recharge and superior life
· Through-the-partition intercell welding
· Redesigned cell construction to provide better power delivery and charge acceptance
Applications:
· Battery life begins when the electrolyte is added
· It is recommended that these batteries be stored in cool, dry areas, as high humidity and temperature will only serve to discharge the negative plates, requiring considerable conditioning if the oxidation is severe
Specifications:
FAA/PMA approved
Aircraft Applications:
Aerostar: 600, 601, 601P
Beech: 19, 23, 24, 55, 58, 77
Cessna: 120, 140, 150, 170, 172, 175, 177, 310, 320, 340
Piper: PA-11, PA-36, PA-38,
